Servo Controlled Voltage Stabilizers

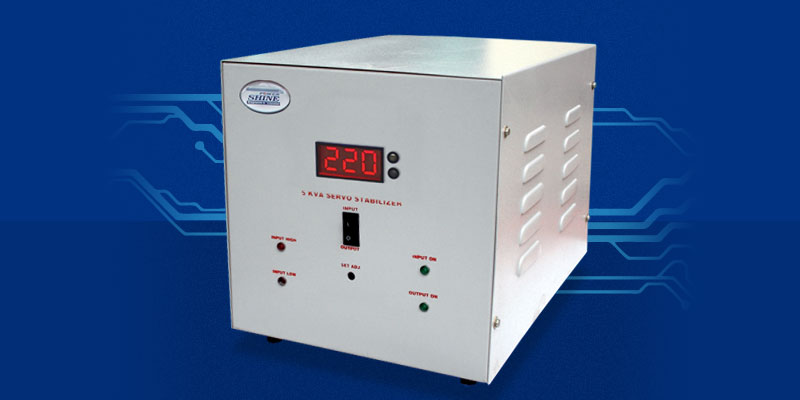

Single Phase Servo Controlled Voltage Stabilizer

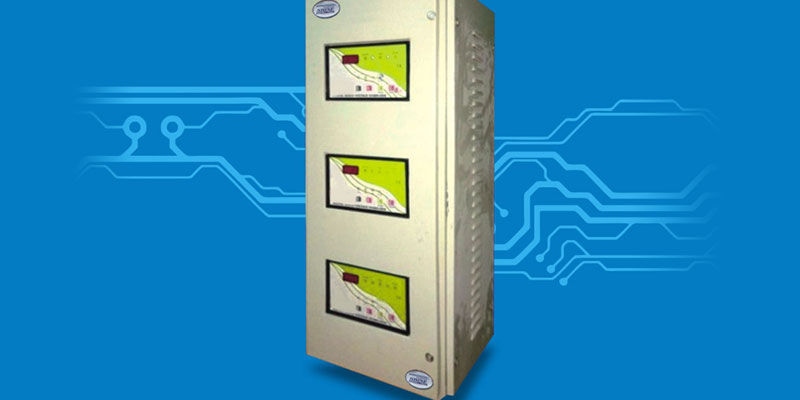

Three Phase Servo Controlled Voltage Stabilizer
Introducing an AC Servo controlled voltage stabilizer to suit your need and budget -yet no compromise in performance and quality. Some models have the unique feature of measuring digitally both voltage and current on a single meter. Trouble-free service and reliability makes our servo stabilizer most competitive and prominent in the market.
Available capacity for both Display & Non Display: 200 VA to 10 KVA: 200 VA, 300 VA, 500 VA, 1 KVA, 2 KVA, 3 KVA, 4 KVA, 5 KVA upto 10 KVA.
Features:
- Reliable READOUT, to read both voltage and current on the output side
- Complete IC version and electronic sensing
- Protective over voltage / under voltage trip facility and spike suppressor
- Precise electronic over load / short circuit trip facility
- Suitably integrated to work even on non-sinusoidal waveform of generator etc.
- Audio annunciation on restoration of power to normality
- Multi socket output
- Very High Efficiency
- Distort free output wave form
Technical Specifications:
| # | THREE PHASE SERVO STABILIZERS | SINGLE PHASE SERVO STABILIZERS | |
|---|---|---|---|
| 1 | Oil Cooled/air Cooled Models | With Digital Voltage/ Current Measurement | |
| 2 | Capacities | 3.0 KVA - 45.0 KVA Air Cooled30.0 KVA - 1000 KVA Oil Cooled | 1 KVA -15 KVA |
| 3 | Input Voltage Range | 295 V - 465 V | 170 V -270 V |
| 4 | Type Of | Connection | 4 Wires System |
| 5 | Insulation | Class B | Class B |
| 6 | Frequency | 47 Hz - 53 Hz | 47 - 53 Hz |
| 7 | Output Voltage | 400 V ± 1% Adjustable | 230 V Adjustable |
| 8 | Output Waveform | Distortion less true reproduction of input | Distortion less true reproduction of input |
| 9 | Power Factor | Nil | Nil |
| 10 | Efficiency | 98% Approx. at ful load | 98% Approx. at ful load |
| 11 | Operating Temperature | 10 °C- 55 °C | |
| 12 | Correction Rate | 60 V/sec | 35 V/sec |
| 13 | No. of Phase | Three Or Two | Single Phase |
| 14 | Control Action | Automatic Manual In Case Of Auto FailureOutput Can Be Set Manualy. | Automatic/manual |
| 15 | Servo Motor | Rugged A.C. Synchronous | Rugged A.C. Synchronous |
| 16 | Meters | Digital/analog | Digital/analog |
| 17 | Panel Indication | LED Indications | LED Indications |
| 18 | Panel Control | Auto/Manual Switch Increase / Decrease By Spring Load Switch Output Voltage Set Adjustment Voltage/Current By Selection | |
| 19 | Output Regulations | ±1% of the set value within the specified range | ±1% of the set value within the specified range |
| 20 | Protections | Fuse protection for servo motor Input Fuse Up. 15 KVA Under Voltage /Over Voltage Trip Electronic Over Load Spike Suppresser Single Phase Prevention | Fuse PROTECTION FOR MOTOR AND INPUT Under Voltage/ Over Voltage Electronic Over Load Spike Suppresser |
